Canon XF105 HD Professional Camcorder Canon XF105 HD Professional CamcorderCanon XF105 HD Professional Camcorder
Canon Camcorders

Canon XF105 HD Professional Camcorder

SKU: 417039
MPN: 4885B001
BRAND: Canon
CONDITION: New

Extended Warranties Available:

Availability: In Stock
Fast & Free Shipping (Ships in 1-2 Business Days)
MSRP: $2,995.00
You Pay: $1,489.00




Need help? Call Us:
800-213-7037

Filters & Filter Kits

Microphones & Light Meters

Tripods & Monopods

Screen Protectors & Cleaning Kits

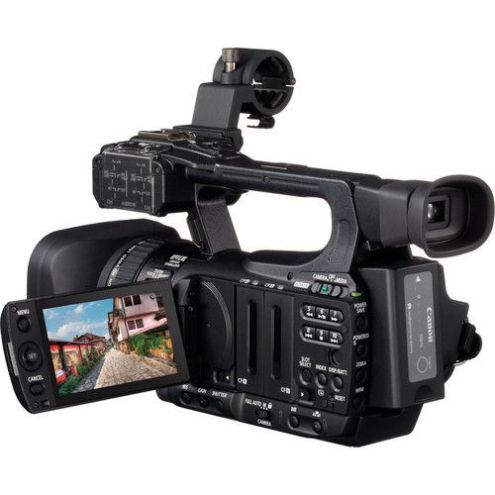

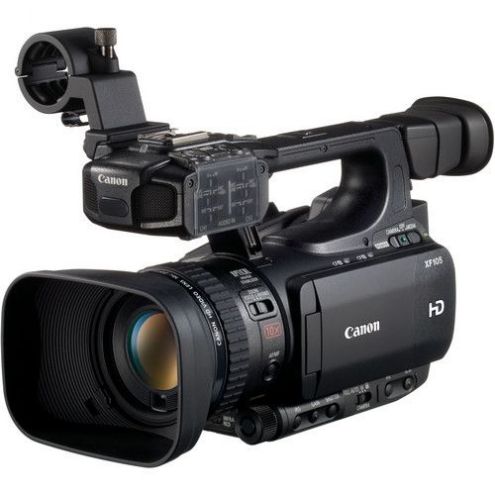

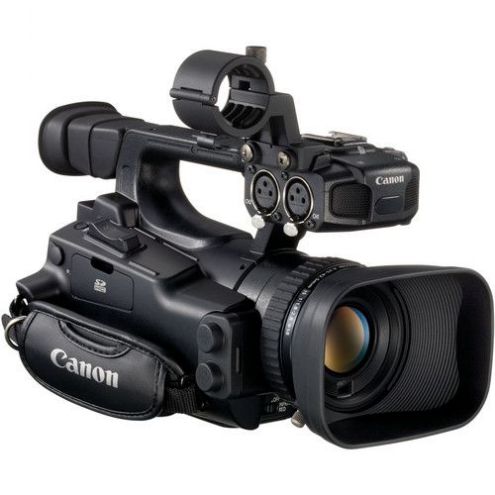

Compact in size, light weight and fully featured, the Canon XF105 Professional Camcorder can be tailored to fit a wide range of individual needs. While sharing many of the capabilities of the Canon XF305 and XF300 Professional Camcorders, including the Canon XF Codec and Compact Flash (CF) recording, the XF105 offers some exciting new features of its own. Whether used as a companion to the XF305 or XF300 or as a standalone camcorder, the XF105 is geared for a wide range of applications where high image quality, extreme portability, and efficient workflow are of the utmost importance. And with infrared recording and true stereoscopic 3-D production capabilities, the XF105 allows users to explore new creative outlets and emerging markets. The XF105 utilizes Canon's XF Codec - a file-based MPEG-2 compression with an MXF File Wrapper that ensures the widest compatibility with existing industry infrastructure, metadata and non-linear editing (NLE) systems. The codec's 4:2:2 color sampling provides ultra-fine transitions in tone and color for maintaining the highest image quality needed for advanced post production processing. The XF105's newly developed Genuine Canon 10x HD Video Lens along with a Canon native 1920 x 1080 CMOS Image Sensor delivers exceptional image quality. The XF105 also offers multiple recording bit rates, resolutions and variable frame rates to expand creative flexibility, allowing users to work in virtually any production environment. Incorporating industry-standard HD-SDI output, genlock input SMPTE time code input/output terminals makes the Canon XF105 perfectly matched for live application and multi-camera shooting.
  • Standard Definition or High Definition High Definition
  • Power Supply (rated) 7.4V DC (battery pack)
  • Video Recording system Compression: MPEG-2 LongGOP
  • Color Space:4:2:2 (at 50Mbps recording)
  • File Format: MXF
  • Recording Modes:
    • 50Mbps(CBR) 4:2:2, 1920x1080, (60i/30p/24p), 1280x720 (60p/30p/24p)
    • 35Mbps (VBR)4:2:0, 1920x1080 (60i/30p/24p), 1280x720 (60p/30p/24p)
    • 25Mbps (CBR) 4:2:0,1440x1080 (60i/30p/24p)
  • Audio Recording system 2-Channel, PCM digital recording, 16-Bit;48kHz
  • Image Sensor 1/3" CMOS
  • Total Pixels Approx. 2.37 megapixels (2044 x 1160 pixels)
  • Effective Pixels Approx. 2.07 megapixels (1920 x 1080 pixels)
  • Maximum recording Time 64GB Compact Flash (CF) card
    • Greater capacity is possible when two cards are used.
      • 25Mbps: 310 minutes
      • 35Mbps: 225 minutes
      • 50Mbps: 160 minutes
  • Lens Canon 10x HD Zoom Lens, 4.25-42.5mm (35mm equivalent 30.4-304mm), f/1.8-2.8
  • Focusing System TVAF plus External Phase Difference Metering Sensor, Autofocus (Instant AF, Medium AF, Normal AF, Face AF, Face Only AF), Manual, Full Manual
  • Max Shutter Speed 1/2000
  • Minimum Focusing Distance 20mm (wide macro), 60cm (entire zoom range)
  • White Balance Auto, Manual, Custom (2000K - 15000K in 100K increments), Daylight, Tungsten
  • Frame Rate 60i, 60p, 30p, 24p (50i and 25p optional upgrade available through Canon Factory Service Center)
  • Minimum Illumination Full AUTO mode: 4.5 lux (Shutter speed 1/60,Gain +24dB); Manual mode: .11 lux (shutter speed 1/4, Gain +33dB), (when 60i is selected)
  • Genlock Terminal BNC (input only) Same terminal as Time Code
  • HD/SD-SDI Terminal BNC (output only), with embedded audio and timecode
  • Timecode Terminals BNC (input/output) Same terminal as Genlock
  • Image Stabilization SuperRange Optical (Lens Shift) 4 modes:Standard, Powered, Dynamic, Off
  • Filter Diameter 58mm
  • Viewfinder 0.24" color widescreen, approx. 260,000 dots, approx.100%  field of view
  • LCD Screen 3.5" color widescreen LCD, approx. 920,000 dots, approx. 100% field of view
  • Microphone Stereo electrect condenser microphone
  • Recording Media CF Card : 2 Slots, Movie files only
  • SD Card: Still images, Custom Picture Data, Clip Metadata, Custom Settings
  • USB Terminal Mini-B USB 2.0 Hi-Speed
  • Video Terminal Component: Output only
  • Composite: A/V terminal 3.5mm mini-jack, output only
  • Audio Terminal XLR 3-pin jack (2), Switchable between MIC/LINE, 3.5mm stereo mini-jack
  • HDMI Terminal Yes (Type A)
  • AV Mini Terminal/Headphone Terminal 3.5mm stereo mini-jack
  • Remote Control Terminal Yes (compatible with LANC protocol)
  • Operating Temperature range: 32° - 104°F (0° - 40°C), 85% relative humidity
  • Dimensions: Approx. 4.8" x 5.8" x 9.8" (121 x 148 x 250mm) (not including lens hood, mic holder unit, grip strap)
  • Weight (not including battery pack and memory card): 2.4 lbs (1070 g)(includes grip strap)
  • Weight: 2.8 lbs (1290 g) (includes grip strap, lens hood, mic holder unit, BP-925, CF card (x1) and SD card)
  • Brand New Factory Fresh Import Model
