Sony PMW-160 XDCAM HD422 Handheld Camcorder Sony PMW-160 XDCAM HD422 Handheld Camcorder
Sony Camcorders

Sony PMW-160 XDCAM HD422 Handheld Camcorder

SKU: 415439
MPN: PMW-160
BRAND: Sony
CONDITION: New

Extended Warranties Available:

Availability: In Stock
Fast & Free Shipping (Ships in 1-2 Business Days)
MSRP: $3,999.00
You Pay: $3,459.00




Need help? Call Us:
800-213-7037

Filters & Filter Kits

Memory & Digital Media

Microphones & Light Meters

Tripods & Monopods

Screen Protectors & Cleaning Kits

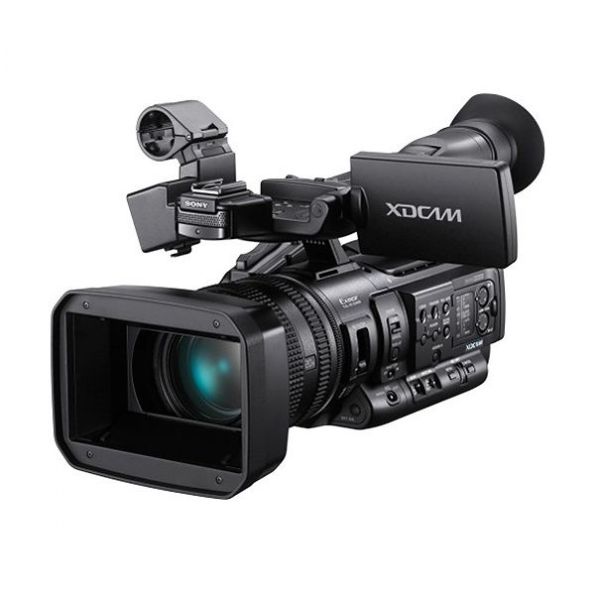

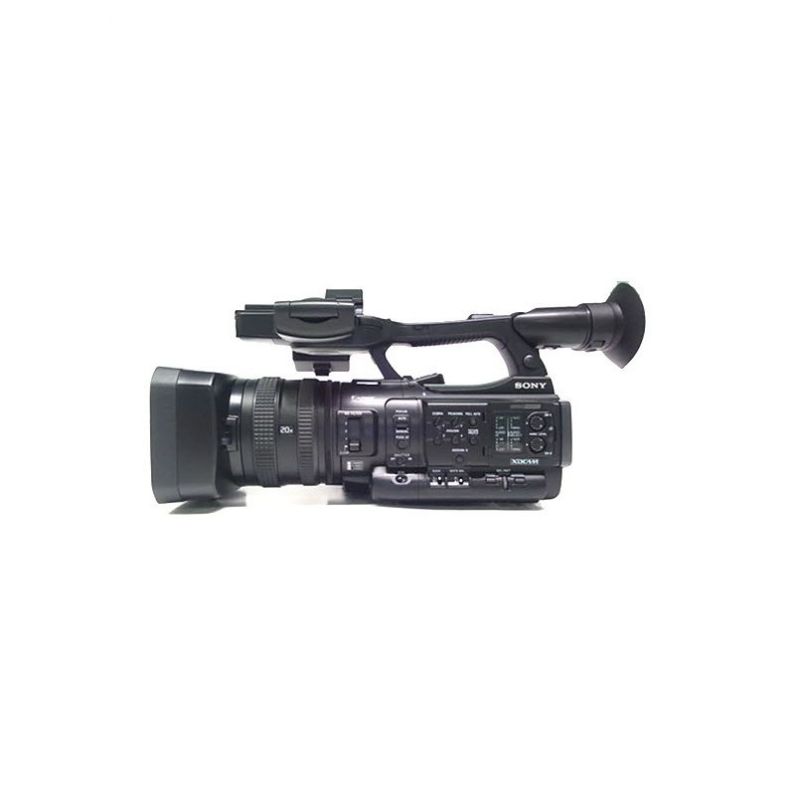

The Sony PMW-160 XDCAM HD422 Camcorder features three 1/3" Exmor CMOS sensors and a 20x power zoom lens. PMW-160 utilizes the XDCAM HD422 format at 50Mbps. The articulated LCD monitor and EVF each feature 480 vertical lines of resolution. The camera also supports Wi-Fi remote operation via a mobile App and the optional CBK-WA01 Wi-Fi Adapter (sold separately). Key Features Three 1/3" sized Full HD Exmor CMOS Sensors Sony Power Zoom Lens with 20x Zoom Ratio Supports XDCAM HD422 Format at 50Mbps Articulated LCD and EVF with 480 Resolution DVCAM for SD Recording and Playback Play and Record UDF and FAT Cards Built-in ND Filters (1/4, 1/16, 1/64) Signal-to-Noise Ratio 54 dB Two SxS Memory Card Slots Wi-Fi Remote Capability with mobile App and CBK-WA01 (sold separately) Lens Hood with Shutter Mechanism
Imaging Device 3 x 1/3" Exmor CMOS
Signal to Noise Ratio 54 dB
Zoom Ratio 20x
35mm Equivalent Focal Length 29.5 - 590mm
ND Filters OFF, 1/4, 1/16, 1/64
Gain Selection -3, 0, 3, 6, 9, 12, 18 dB
Sensitivity F9 (typical) at 2000 lx, 89.9% reflectance
Slow Shutter 2, 3, 4, 5, 6, 7, 8, 16, 32, and 64-frame accumulation
File Format UDF, FAT
Video Recording Format UDF Mode (HD Recording)
MPEG HD422 (MPEG-2 422P@HL):
CBR, 50 Mb/s

MPEG HD420 (1440x1080, MPEG-2 MP@HL):
HQ mode (VBR, maximum bit rate: 35 Mb/s)
SP mode (CBR, 25 Mb/s) - playback only
LP mode (VBR, maximum bit rate: 18 Mb/s) - playback only

UDF Mode (SD Recording)DVCAM (CBR, 25 Mb/s)

FAT Mode (HD Recording)
MPEG HD420 (1920x1080, MPEG-2 MP@HL):
HQ mode (VBR, maximum bit rate: 35 Mb/s)
SP mode (CBR, 25 Mb/s)

Fat Mode (SD Recording)
DVCAM (CBR, 25 Mb/s)
Frame Rates XDCAM HD422 at 50Mbps:
1080/59.94i, 1080/29.29p, 1080/23.98p, 1080/50p, 1080/25p
720/59.94p, 720/29.97p, 720/23.98p, 720/50p, 720/25p
Audio Recording UDF Mode (HD Recording)
MPEG HD422 (MPEG-2 422P@HL):
4 channels, 48KHz, 24-bit LPCM

MPEG HD420 (1440x1080, MPEG-2 MP@HL):
4 channels, 48KHz, 16-bit LPCM

UDF Mode (SD Recording)DVCAM: 4 ch/16 bits/48 kHz

FAT Mode (HD Recording)
MPEG HD420 (1920x1080, MPEG-2 MP@HL):
2 channels, 48KHz, 16-bit LPCM

FAT Mode (SD Recording)
DVCAM: 2 channels, 48 KHz, 16-bit LPCM
Recording/Playback Time UDF Mode (HD Recording)
50 Mb/s MPEG HD422 (MPEG-2 422P@HL):
Approx. 120 min with SBS-64G1A (64 GB) memory card
Approx. 60 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 30 min with SBP-16 (16 GB) memory card

35 Mb/s VBR, HQ Mode MPEG HD420 (1440x1080, MPEG-2 MP@HL):
Approx. 180 min with SBS-64G1A (64 GB) memory card
Approx. 90 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 45 min with SBP-16 (16 GB) memory card

UDF Mode (SD Recording)
25 Mb/s DVCAM
Approx. 220 min with SBS-64G1A (64 GB) memory card
Approx. 110 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 55 min with SBP-16 (16 GB) memory card

FAT Mode (HD Recording)
35 Mb/s VBR, HQ Mode - MPEG HD420 (MPEG-2 MP@HL):
Approx. 200 min with SBS-64G1A (64 GB) memory card
Approx. 100 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 50 min with SBP-16 (16 GB) memory card

25 Mb/s CBR, SP Mode - MPEG HD 420 (MPEG-2 MP@HL-14):
Approx. 280 min with SBS-64G1A (64 GB) memory card
Approx. 140 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 70 min with SBP-16 (16 GB) memory card

Fat Mode (SD Recording)
25 Mb/s DVCAM
Approx. 220 min with SBS-64G1A (64 GB) memory card
Approx. 110 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 55 min with SBP-16 (16 GB) memory card
Recording Media 2 x SxS Express 34 Cards
Inputs 2 x XLR-type 3-pin (female): line, mic, mic +48 V selectable
1 x BNC (switchable to Video Out), 1.0 Vp-p, 75?
1 x BNC, Timecode In (switchable to TC Out), SMPTE-12M-2008, 0.5-1.8 Vp-p, 10k?)
Outputs 1 x A/V out jack: 10 pin connector
1 x BNC, (switchable to Genlock In), HD-Y / Composite switchable, 1.0 Vp-p, 75?
1 x BNC, HD/SD switchable, SMPTE-292M/259M
1 x BNC, Timecode Out (switchable to TC In), SMPTE-12M-2008, 1.0 Vp-p, 10k?
USB 2.0 1 x mini-B
IEEE-1394 1 x 4-pin, HDV (HDV 1080i) / DV input/output, S400
Earphone 1 x Mini-jack (stereo)
Built-in Speaker Monaural, 250 mW
Viewfinder Electric Viewfinder (EVF)
Approx 1.2 million pixels
852 x 3 x 480 (HxRGBxV)
LCD Monitor 3.5" (8.9 cm) color LCD
852 x 3 x 480 (HxRGBxV)
Aspect Ratio: 16:9
Built-In Microphone Omni-directional stereo electret condenser
Wi-Fi Yes
Humidity 10 to 90% (relative humidity)
Storage Temperature -4 to 140&def;F (-20 to 60F)
Operating Temperature 32 to 104F (0 to 40C)
Power Requirements 12 VDC
Dimensions (WxHxD) 6.77 x 6.46 x 12.83" (17.2 x 16.4 x 32.6 cm) (without protrusions)
  • Brand New Factory Fresh Import Model
