Sony PMW-300K1 XDCAM HD Camcorder Sony PMW-300K1 XDCAM HD CamcorderSony PMW-300K1 XDCAM HD Camcorder
Sony Camcorders

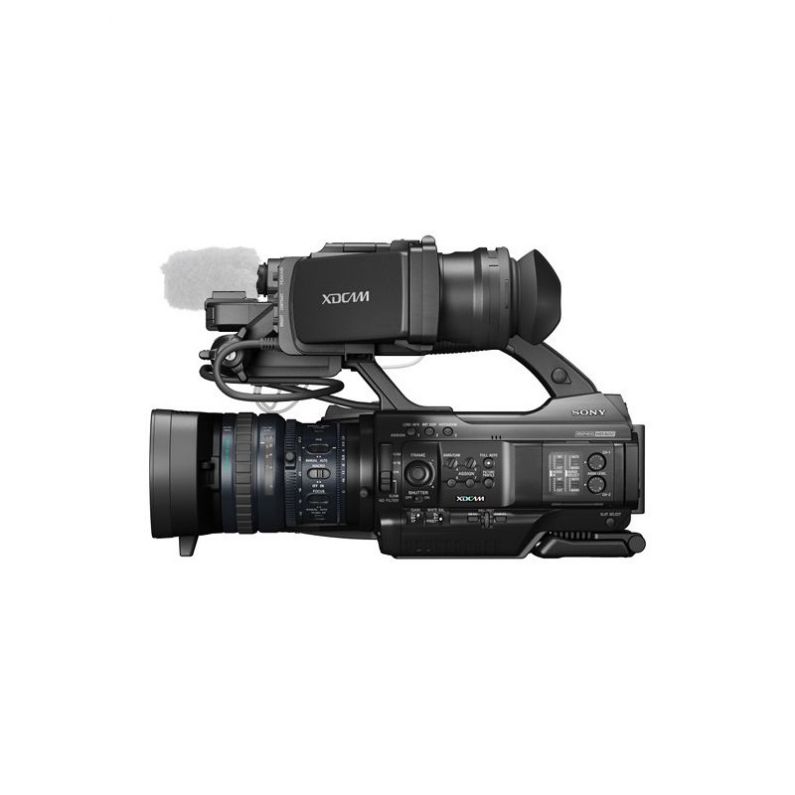

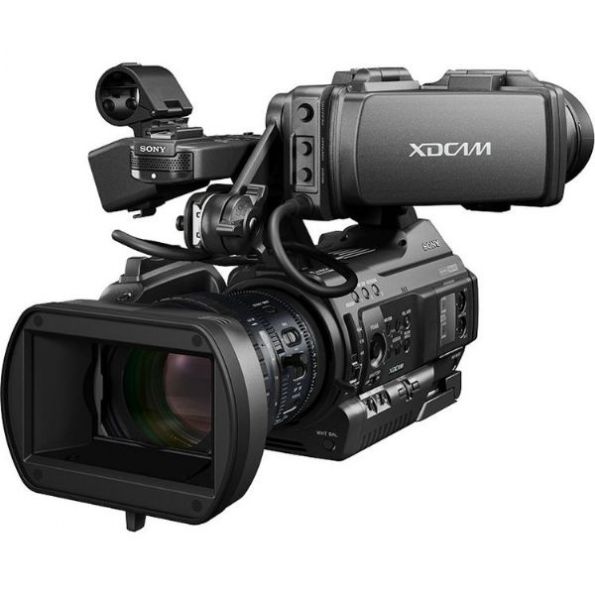

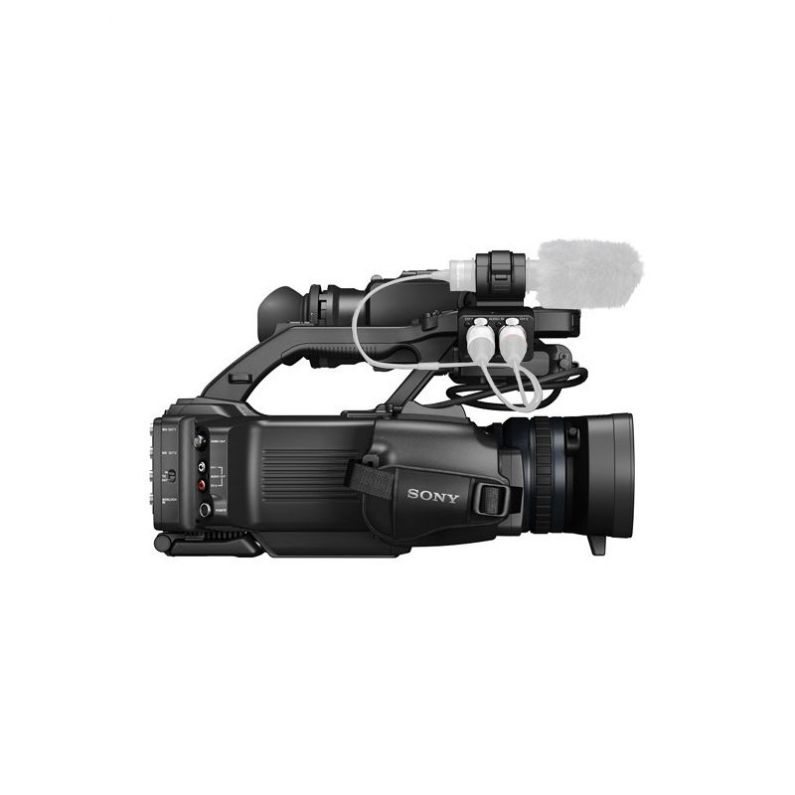

Sony PMW-300K1 XDCAM HD Camcorder

SKU: 416285
MPN: PMW-300K1
BRAND: Sony
CONDITION: New

Extended Warranties Available:

Availability: In Stock
Fast & Free Shipping (Ships in 1-2 Business Days)
MSRP: $7,699.00
You Pay: $6,939.00




Need help? Call Us:
800-213-7037

Filters & Filter Kits

Memory & Digital Media

Microphones & Light Meters

Tripods & Monopods

Screen Protectors & Cleaning Kits

 The Sony PMW-300K1 XDCAM camcorder is the first semi-shoulder mount camcorder to combine the benefits of 1/2-type Exmor™ Full HD 3CMOS sensor technology with 50Mbps HD recording at MPEG HD422, meeting broadcast standards around the world. The high bit rate ensures excellent capture of fast moving objects, while its chroma subsampling feature is perfect for a wide range of video recording situations. Although the PMW-300K1 features the same lens and imager as the PMW-EX3, Sony has developed advanced signal processing technology to suppress noise effectively and create noticeably clearer images, and enable it to reproduce better S/N ratio than that of the PMW-EX3. In addition to the list of exceptional features the new PMW-300K1 shares with the PMW-EX3, the new camcorder now offers Cache Recording of up to 15 seconds, 1/16 ND filter position in addition to 1/4 and 1/64, more Gamma selections, eight assignable switches, QHD 960 X 540 resolution viewfinder, second SDI output, HDMI output, USB connectivity and more. The newly added USB connection enables the wireless remote control, video streaming and high resolution/XAVC proxy file transfer capabilities with an optional CBK-WA100 Wireless Adapter. Ample support for interchangeable lenses and a robust metal body further ensure that PMW-300K1 is suitable for a wide range of applications. Additionally, the PMW-300K1 offers TC In/Out, and Genlock In connectivity. The camera also includes a 700 protocol remote interface allowing various camera settings to be remotely controlled using an optional RM-B170 Remote Control Unit. These additional features open up the list of possible applications to include multi-camera and studio configurations. Sony PMW-300K1 Features: High Picture Quality Powerful Noise Suppresion Selectable Format and Bit Rates 3.5-inch Color LCD Viewfinder (Viewable area measured diagonally) Various Conveniences via a Wireless Adapter Comfortable and Stable Shooting Variety of Interfaces
Signal System XDCAM EX, NTSC/PAL
HD HQ (1920 x 1080): 1080/60i, 1080/50i, 1080/24p, 1080/25p, 720/60p, 720/30p, 720/24p, 720/25p

HD SP (1440 x 1080): 1080/60, 1080/50i (Option), 1080/24p (pull-down), 720/50p, 720/25p
SD (720 x 480): 480/60i, 30p; (720 x 576) 576/50i, 25p
Image Device 3-chip 1/2"-type Exmor Full HD CMOS
Optical System F1.6 Prism System
Lens Mount 1/2"-type Sony Bayonet
Lens Fujinon 16x Optical Zoom, Servo/Manual
5.8 to 93 mm (31.4 to 503 mm, 35mm equivalent)
f/1.9 - 16 and Close, auto/manual selectable
Focus AF/MF/Full MF selectable, 800 mm to - (MACRO OFF), 50 mm to - (MACRO ON, Wide), 782 mm to - (MACRO ON, Tele)
Filter Diameter 82mm, pitch 0.75mm (on lens)
Signal-to-Noise Ratio 54 dB
Horizontal Resolution 1000 lines or more
Sensitivity 2000 lux, 89.9% Reflectance, f/10 (Typical, 1920 x 1080 59.94i), f/11 (Typical, 1920 x 1080/50i mode)
Minimum Illumination 0.05 lux (Typical)
1920 x 1080/59.94i mode, f/1.6, +24 dB gain, with 64-frame accumulation
Built-in Filters 1: Clear, 2: 1/4 ND, 3: 1/16 ND, 4: 1/64 ND
Viewfinder 3.5" Color LCD/Viewfinder, 921,000 Effective Pixels, 640 x 3 (RGB) x 480, 16:9, Hybrid Type
Scan Matching Yes
Memory Card Slot ExpressCard/34 (x2)
Shutter Speed Range 1/60-1/2000 sec + ECS
Slow Shutter (SLS): 2, 3, 4, 5, 6, 7, 8, 16, 32 and 64-frame accumulation
Gain Selection -3, 0, 3, 6, 9, 12, 18, 24 dB
Maximum Recording Time 32GB
HQ: 100 min
SP/SD: 140 min
16GB
HQ: 50 min
SP/SD: 70 min

8GB
HQ: 25 min
SP/SD: 35 min
Frame Rates Slow & Quick Motion function
720p: Selectable from 1fps to 60 fps as recording frame rate
1080p: Selectable from 1fps to 30 fps as recording frame rate
White Balance Preset (3200K), Memory A, Memory B/ATW
Audio
Audio Signal Format HD mode: Linear PCM (4ch, 16-bit, 48-kHz)
SD mode: Linear PCM (2ch, 16-bit, 48-kHz)
Audio Frequency Response Not specified by manufacturer
Signal to Noise Ratio Not Specified by Manufacturer
General
Input and Output Connectors Composite: BNC (x1 Output)
HD/SD-SDI: BNC (x1 Output)
HDMI: 19-pin (x1 Output)
Audio: XLR 3-Pin Female (x2 Input)
Audio: XLR 5-pin (x1 Output)
Speaker: Monaural (x1 Output)
i.LINK: FireWire 6-Pin (x1 Input/Output)
USB: Mini-B
Microphone: XLR 5-pin
Headphone: Stereo Mini Jack (x1 Output)
Timecode: BNC (x1 Input, x1 Output)
Genlock: BNC (x1 Input)
Lens: 12-pin
Remote: 8-pin
Wireless Receiver: 15-pin D-Sub (x1 Input)
Power Requirements 12VDC
Power Consumption With LCD VF, AF lens, mic, while recording in 1080/59.94i: 18W (approx.)
Body while recording in 1080/59.94i: 15W (approx.)
Operating Temperature 32-104°F (0-40°C)
Dimensions (WxHxD) 5 x 10.6 x 13.13" (12.4 x 26.9 x 33.2 cm)
Weight 7.1 lbs (3.2kg)
With LCD VF, AF lens, Mic, BP-GL95: 13.9 lbs (6.3kg)
Packaging Info
Package Weight 16.2 lb
Box Dimensions (LxWxH) 26.5 x 17.0 x 14.0"
  • Brand New Factory Fresh Import Model
