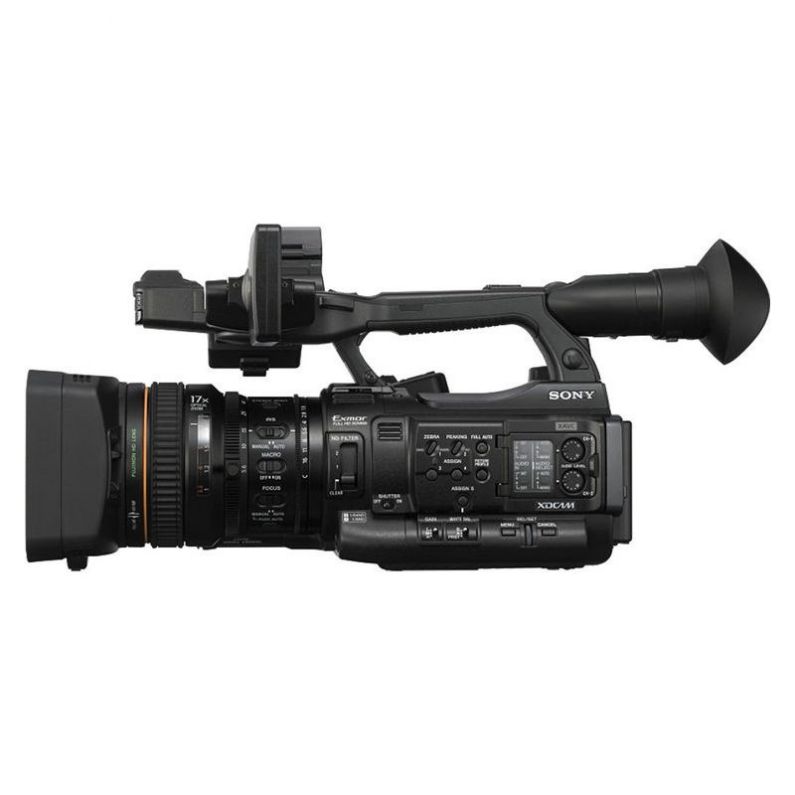

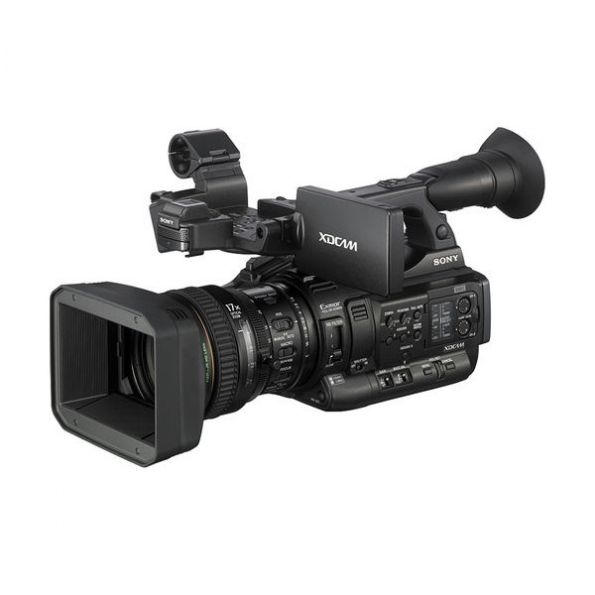

Sony PXW-X200 Full HD XDCAM Handheld Camcorder

SKU: 416820
MPN: PXW-X200
BRAND: Sony
CONDITION: New

Extended Warranties Available:

Availability: In Stock
Fast & Free Shipping (Ships in 1-2 Business Days)
MSRP: $7,049.00
You Pay: $6,889.00




Need help? Call Us:
800-213-7037

Filters & Filter Kits

Memory & Digital Media

Microphones & Light Meters

Tripods & Monopods

Screen Protectors & Cleaning Kits

Full HD XAVC Intra/Long GOP recordings and MPEG HD 422 50 Mbps with superb picture quality for broadcast applications such as newsgathering and documentaries The PXW-X200 three 1/2-type Exmor™ CMOS sensors compact XDCAM camcorder achieves high sensitivity and low noise recordings in Full HD XAVC Intra and XAVC Long GOP, as well as MPEG HD 422 50 Mbps MPEG HD 420 35 Mbps, MPEG IMX and DV. As the successor of PMW-200, the PXW-X200 has a lot of attractive features, including dual SxS memory card slots for simultaneous recordings, cache recordings, Slow & Quick function, a 3.5 inch-type QHD (960 x 540) colour LCD panel and a 17x Fujinon professional HD zoom lens with three independent rings with end stops, able to zoom from 29.3mm to 499mm (35mm equivalent). The PXW-X200 also has a built-in wireless operation capability, and also offers remote control, file transfer, monitoring via smartphones and tablet devices, and streaming*.*A firmware version upgrade is required to activate this function. Superb picture quality Three 1/2-type Exmor™ CMOS sensors for high sensitivity and low noise images. Multi-format recordings, including XAVC Full HD XAVC Intra and XAVC Long GOP, as well as MPEG HD 422 50 Mbps MPEG HD 420 35 Mbps, MPEG IMX and DV. Professional features Includes dual SxS memory card slots for simultaneous recordings, cache recordings, Slow & Quick function and a 3.5 inch-type QHD (960 x 540) colour LCD panel. 17x Fujinon professional HD zoom lens Independent focus, zoom and iris rings with end stops, able to zoom from 29.3mm to 499mm (35mm equivalent). Wireless operation capability Offers remote control, file transfer, monitoring via smartphones and tablet devices, and streaming. Streaming function requires firmware upgrade.
Camera
Imaging Device 3 x 1/2" type Exmor CMOS sensor
Effective Pixels 1920x1080 (2.07 million pixels), per sensor
Sensitivity F12 (typical, 1080/59.94i mode)
F13 (typical, 1080/50i mode)
S/N Ratio 58 dB, typical
Shutter Speed 1/32 to 1/2,000 sec
White Balance Preset (3200K), Memory A, Memory B/ATW
Lens
Type Fixed
Zoom Ratio 17x (optical), servo/manual
Focal Length 5.6 to 95.2 mm
35mm Equivalent Focal Length 29.3 to 499 mm
Aperture f/1.9 to f/16 and close, auto/manual selectable
Focus Distance 31.5" (800 mm) to infinity (Macro Off)
2.0" (50 mm) to infinity (Macro On, Wide)
31.5" (800 mm) to infinity (Macro On, Tele)
AF/MF/Full MF selectable
Image Stabilizer On/Off selectable, shift lens
Filter Diameter 77 mm, pitch 0.75 mm
Recording
Video Recording Format exFAT

XAVC-Intra mode: CBG, max. 112 Mbps, MPEG-4 H.264/AVC
1920x1080p 23.98/25/29.97
1920x1080i 50/59.94
1280x720p 50/59.94

XAVC-Long 50 mode: FBR, max. 50 Mbps, MPEG-4 H.264/AVC
1920x1080p 23.98/25/29.97/50/59.94
1920x1080i 50/59.94
1280x720p 50/59.94

XAVC-Long 35 mode: VBR, max. 35 Mbps, MPEG-4 H.264/AVC
1920x1080p 23.98/25/29.97/50/59.94
1920x1080i 50/59.94
XAVC-Long 25 mode: VBR, max. 35 Mbps, MPEG-4 H.264/AVC
1920x1080i 50/59.94

MPEG HD422 mode: CBR, 50 Mbps, MPEG-2 422P@HL
1920x1080p 29.98/25/29.97
1920x1080i 50/59.94
1280x720p 23.98/25/29.97/50/59.94

MPEG HD420 HQ mode: VBR, max. 35 Mbps, MPEG-2 MP@HL
1920x1080p 23.98/25/29.97
1920x1080i 50/59.94
1440x1080p 23.98/25/29.97
1440x1080i 50/59.94
1280x720p 23.98(2-3 Pull Down)/50/59.94

DVCAM mode: CBR, 25 Mbps, DVCAM
720x480i 59.94
720x480PsF 29.97
720x576i 50
720x576PsF 25

UDF

MPEG HD422 mode: CBR, 50 Mbps, MPEG-2 422P@HL
1920x1080p 29.98/25/29.97
1920x1080i 50/59.94
1280x720p 23.98/25/29.97/50/59.94

MPEG HD420 HQ mode: VBR, max. 35 Mbps, MPEG-2 MP@HL
1920x1080p 23.98/25/29.97
1920x1080i 50/59.94
1440x1080p 23.98/25/29.97
1440x1080i 50/59.94
1280x720p 23.98(2-3 Pull Down)/50/59.94

MPEG IMX50 mode: CBR, 50 Mbps, MPEG-2 422P@ML Intra
720x486i 59.94
720x486PsF 29.97
720x576i 50
720x576PsF 25

DVCAM mode: CBR, 25 Mbps, DVCAM
720x480i 59.94
720x480PsF 29.97
720x576i 50
720x576PsF 25

FAT

MPEG HD420 HQ mode: VBR, max. 35 Mbps, MPEG-2 MP@HL
1920x1080p 23.98/25/29.97
1920x1080i 50/59.94
1440x1080p 23.98/25/29.97
1440x1080i 50/59.94
1280x720p 23.98(2-3 Pull Down)/50/59.94

MPEG HD420 SP mode: CBR, 25 Mbps, MPEG-2 MP@H-14
1440x1080p 23.98(2-3 Pull Down)
1440x1080i 50/59.94

DVCAM mode: CBR, 25 Mbps, DVCAM
720x480i 59.94
720x480PsF 29.97
720x576i 50
720x576PsF 25
Audio Recording Format exFAT
XAVC-Intra mode: LPCM 24-bit, 48 kHz, 4 channel
XAVC-Long mode: LPCM 24-bit, 48 kHz, 4 channel
MPEG HD422 mode: LPCM 24-bit, 48 kHz, 4 channel
MPEG HD420 HQ mode: LPCM 16-bit, 48 kHz, 4 channel
DVCAM mode: LPCM 16-bit, 48 kHz, 4 channel

UDF
MPEG HD422 mode: LPCM 24-bit, 48 kHz, 4 channel
MPEG HD420 HQ mode: LPCM 16-bit, 48 kHz, 4 channel
IMX50 mode: LPCM 24/16-bit, 48 kHz, 4 channel
DVCAM mode: LPCM 16-bit, 48 kHz, 4 channel

FAT
MPEG HD420 HQ mode: LPCM 16-bit, 48 kHz, 4 channel
MPEG HD420 SP mode: LPCM 16-bit, 48 kHz, 4 channel
DVCAM mode: LPCM 16-bit, 48 kHz, 2 channel
Proxy: AAC-LC, 48 kHz, 128 kbps, 2 channel
Slow & Quick Motion Function XAVC Intra/Long mode:
1080p: 1-30 and 60 fps in NTSC setting; 1-25 and 50 fps in PAL setting
720p: 1-60 fps in NTSC setting; 1-50 fps in PAL setting

MPEG HD422 mode:
1080p: 1-30 fps in NTSC setting; 1-25 fps in PAL setting
720p: 1-60 fps on NTSC settings; 1-50 fps in PAL setting

MPEG HD420 HQ mode:
1080p: 1-30 fps
720p: 1-60 fps
Interface
Video Output 1 x SD/HD/3G-SDI, BNC connector
1 x HDMI, Type A
Composite Output / GENLOCK-IN 1 x BNC
Audio Input 2 x XLR 3-pin (female)
Audio Output 1 x A/V multi-connector
TC Input / Output 1 x BNC
Lens Remote Control Connector 1 x 8-pin, round
DC Input 1 x DC jack
USB 1 x USB mini-B connector
Shoe Mounts 1 x Multi-Interface
Headphone Output 1 x 3.5 mm stereo mini jack
IEEE-1394 (FireWire/DV/iLink) 1 x 4-pin, Type A
Monitoring
LCD 3.5" (8.89 cm) type
960 x 540 x 3 (RGB)
16:9
Viewfinder 0.45" (1.14 cm) type
960 x 540 x 3 (RGB)
16:9
Recording Media
Slots 2 x ExpressCard/34; supports SxS cards (for XAVC/MPEG/IMX/DV)
1 x SD/SDHC (for Proxy)
General
Built-In Microphone Omni-direction stereo electret condenser microphone
Wi-Fi Yes (with included IFU-WLM3 wireless module)
NFC Yes
Power Requirements 12 VDC
Power Consumption Approx. 18 W (while recording with LCD Off, EVF On, I/O Select Off, and wireless function Off)
Approx. 23 W (while recording with LCD On, EVF Off, HD-SDI output, and wireless function On)
Battery Operating Time BP-U90: approx. 4.5 hours
BP-U60: approx. 3 hours
BP-U30: approx. 1.5 hours

(while recording with LCD Off, EVF On, I/O Select Off, and wireless function Off)
Operating Temperature 32 to 104 F (0 to 40 C)
Storage Temperature -4 to 140 F (-20 to 60 C)
Dimensions (WxHxD) 6.61 x 6.34 x 13.03" (16.8 x 16.1 x 33.1 cm) (without protrusions)
  • Brand New Factory Fresh Import Model
